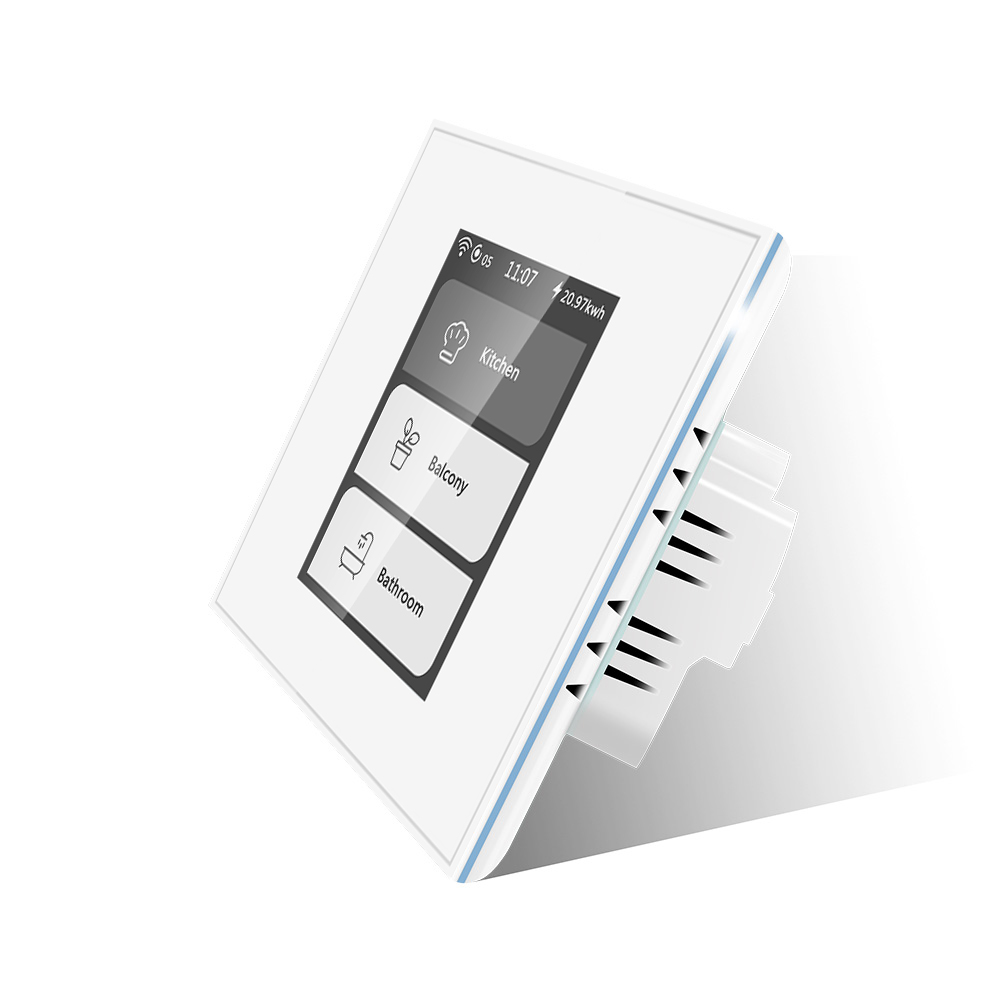

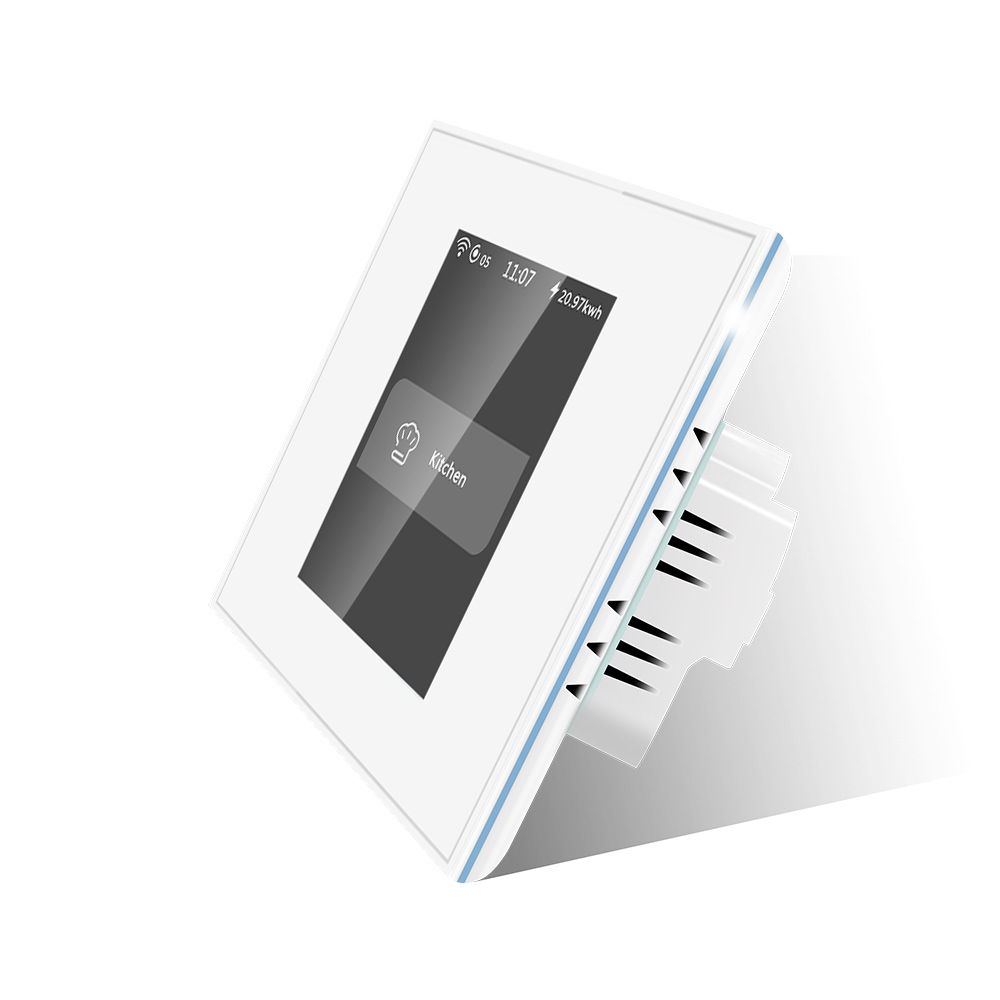

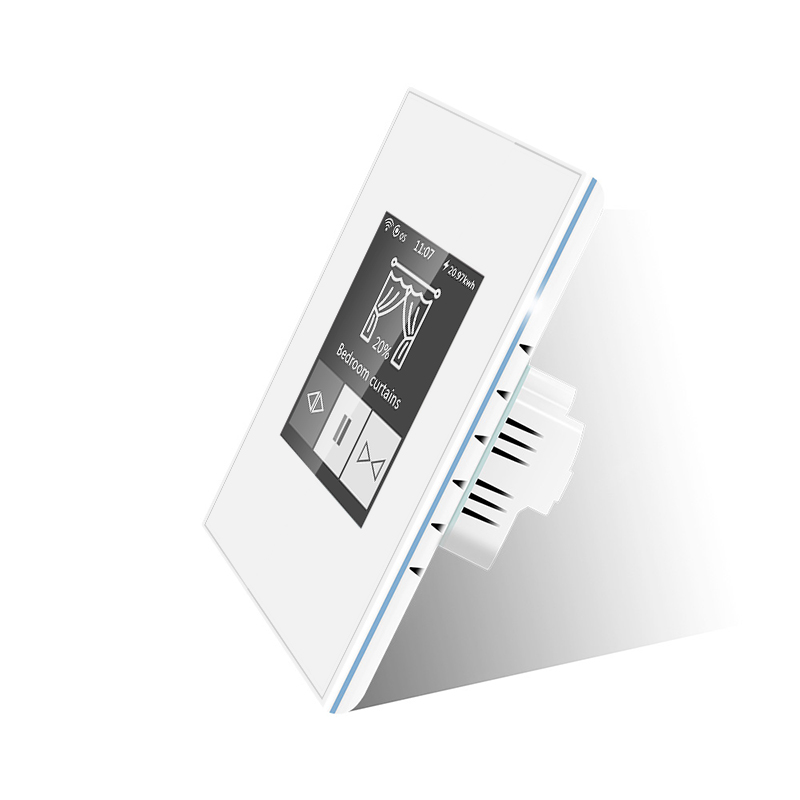

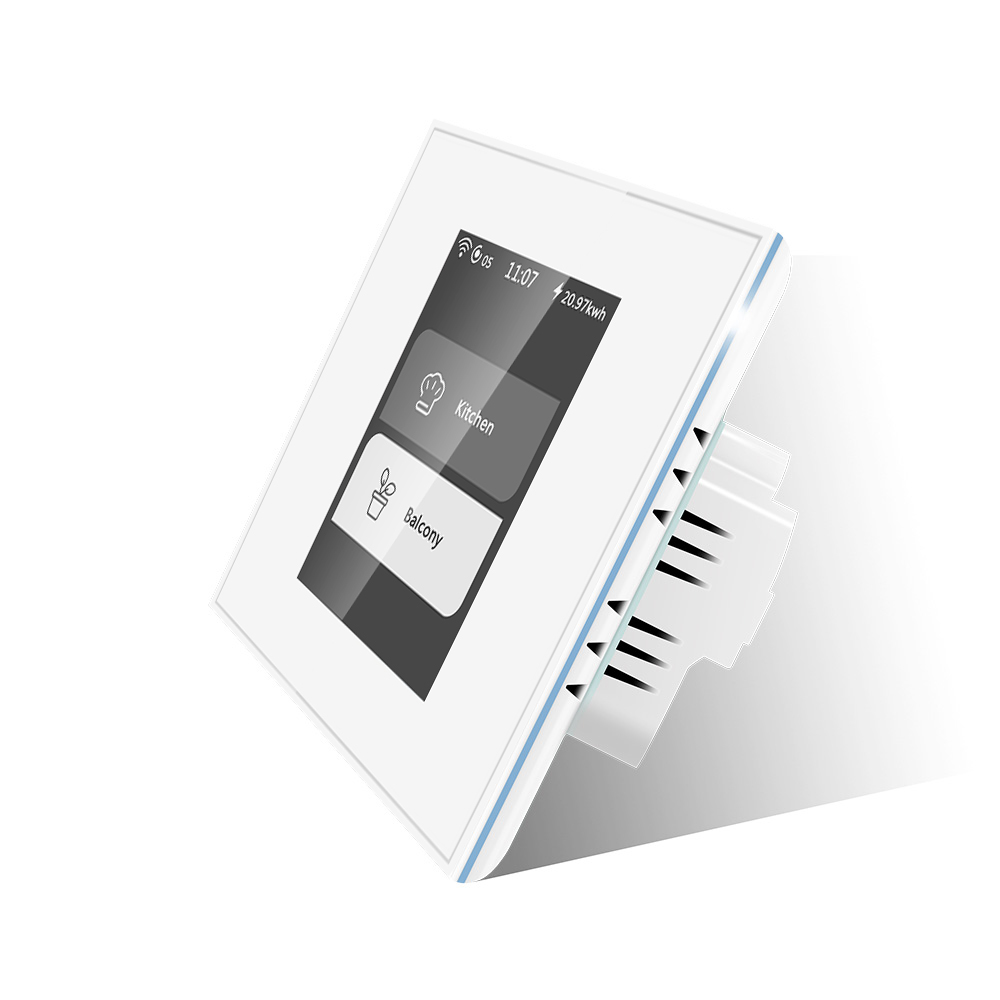

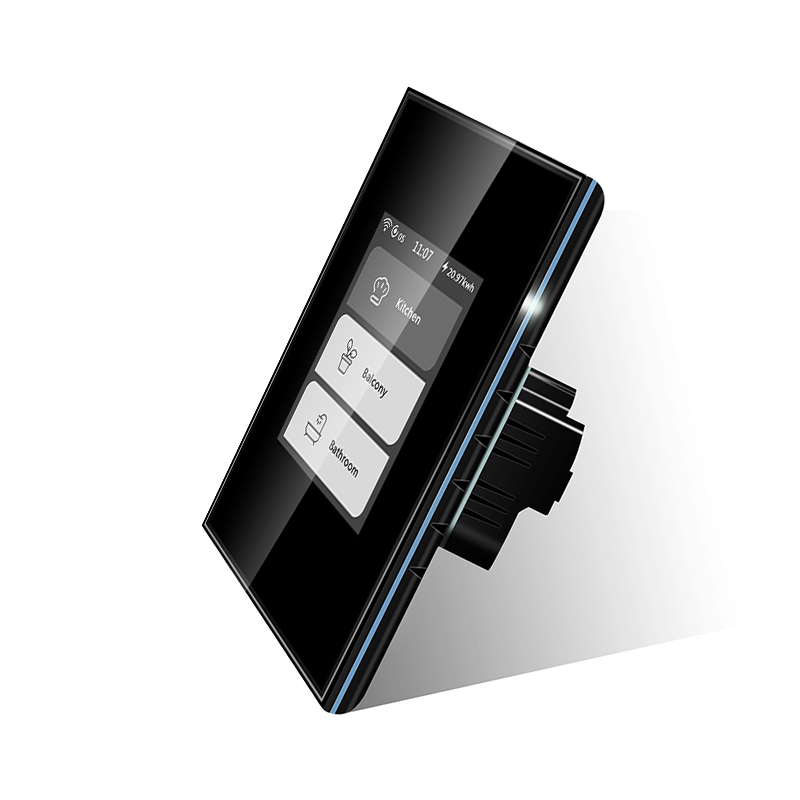

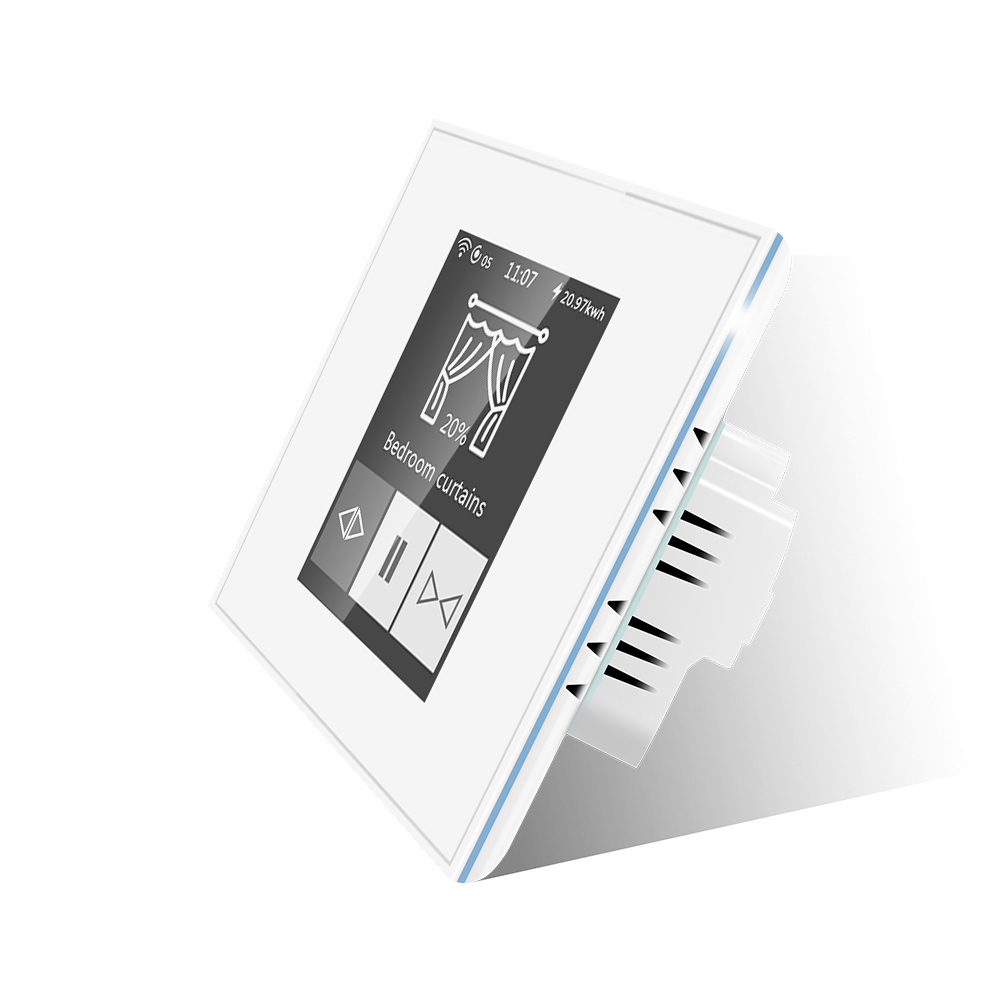

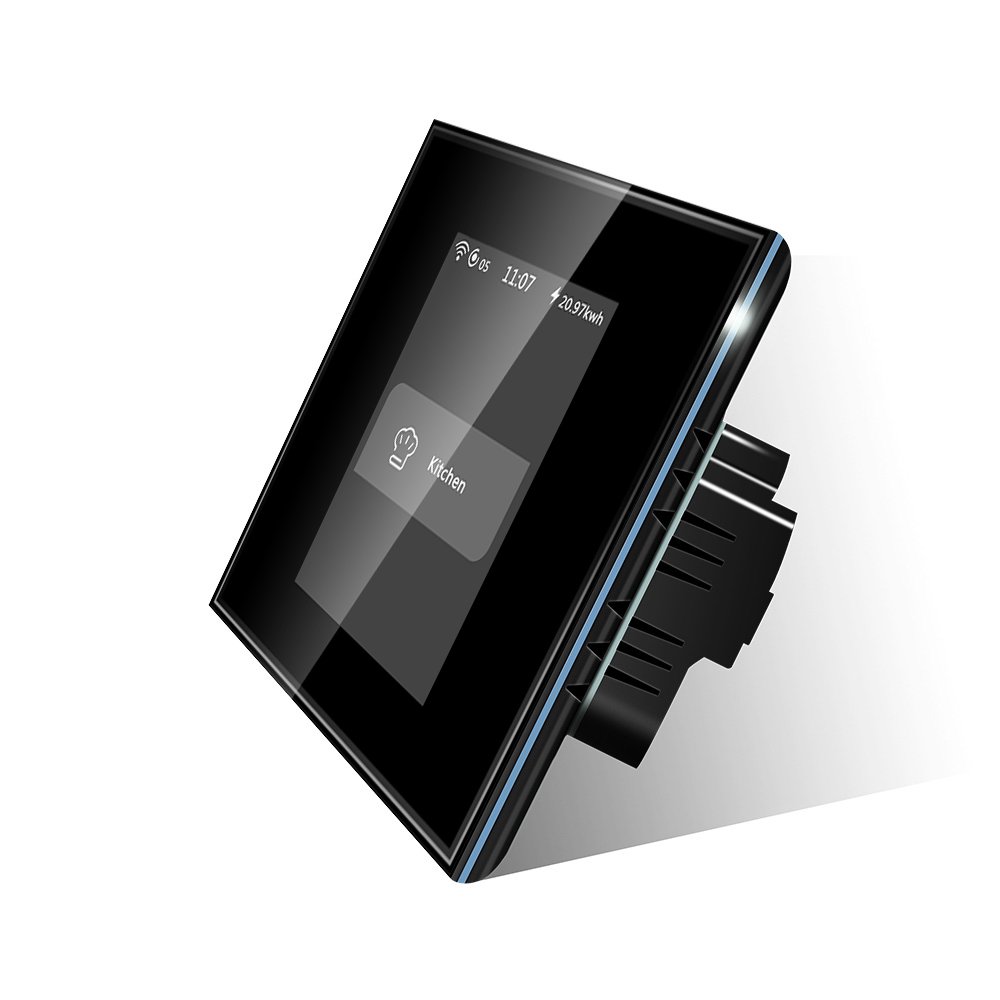

  • L8 Suport HomeKit Smart Switch

    Size:86mmx86mm

    Model No.:L8-HS

    Convertible model:

    1 Gang Switch,2 Gang Switch,3 Gang Switch,
    Curtain Switch,Scene Switch,Thermostat Switch

    Weight:0.3KG

    Package Size:102.6mmx141mmx51.1mm

    Panel:Capacitive touch screen

    LCD resolution:240*320

    Bottom Materials: Retardant PC

    Rated voltage: AC 100-250V 50/60Hz

    Rated current/Max Current: 3A/10A

    Rated Load: 200W

    Load type:

    Incandescent lamp,energy saving lamp,fluorescent lamp,
    horizontal curtain motor,vertical curtain motor,electric door,
    floor heating plumbin,etc.

    Wireless Wi-Fi standard: 802.11b/g/n

    Wireless Wi-Fi Security:WEP/WPA/WPA2( AES-TKIP-Personal)

    Wi-Fi performance Transmission power: +15dBm

    Wi-Fi performance Receiver sensitivity: -91dBm

    Standby Current: 0.009A

    Standby power: 2W

    Operating temperature: -25 degree to +60 degree

    Relative humidity:<95%
