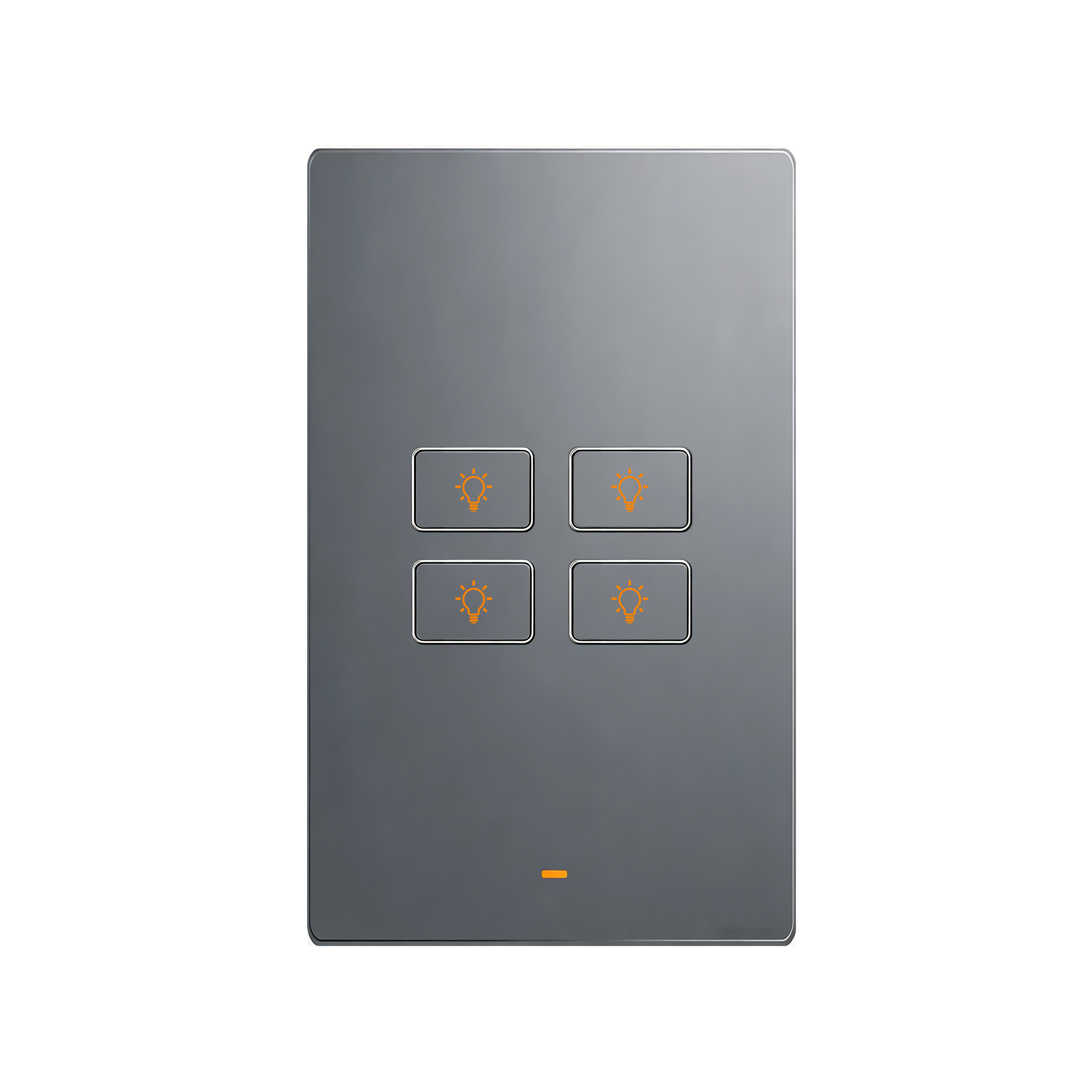

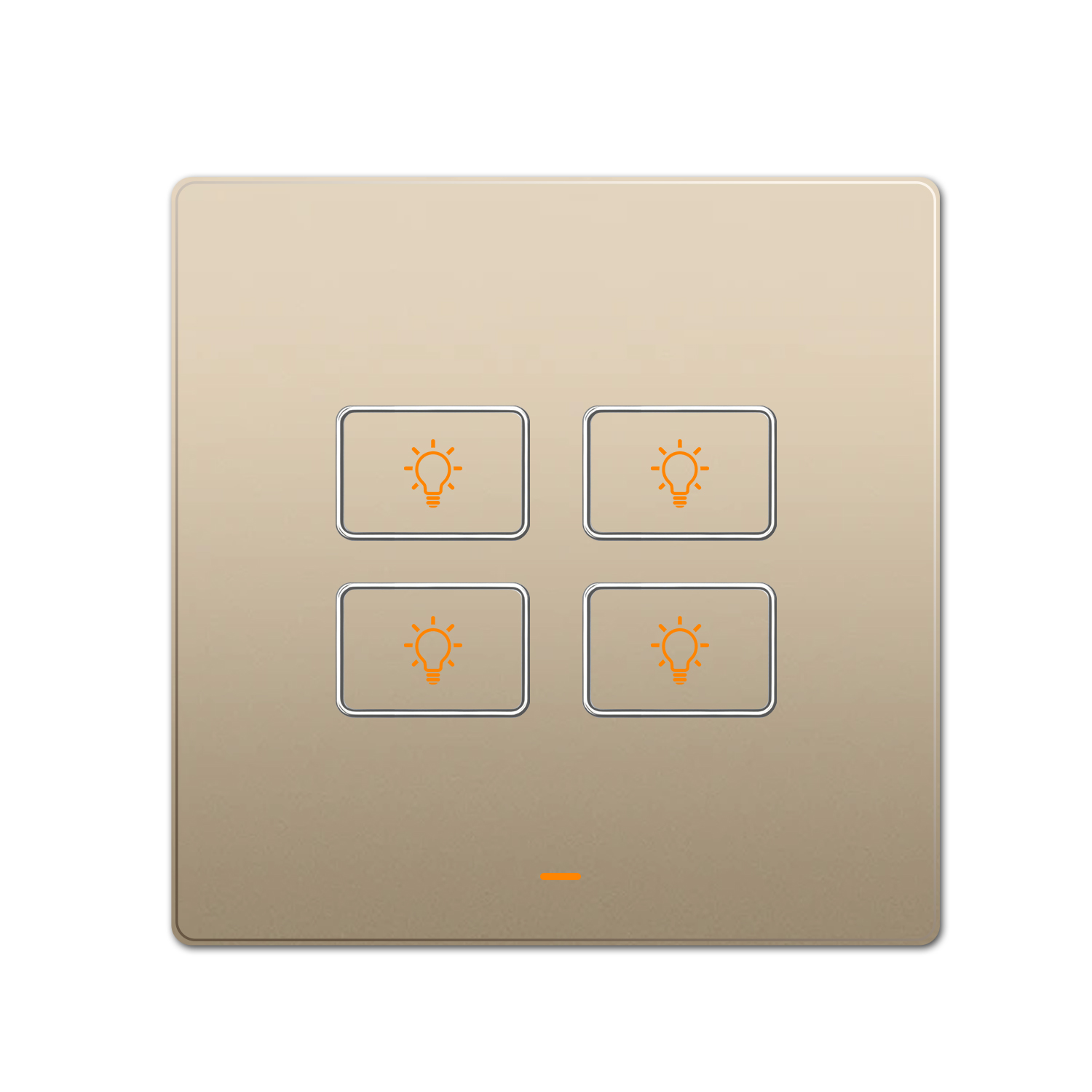

    L10R Standard Version (Neutral Wire Required)
    L10R Standard Version (Neutral Wire Required)
    L10R Standard Version (Neutral Wire Required)
    L10R Standard Version (Neutral Wire Required)
    L10R Standard Version (Neutral Wire Required)
    L10R Standard Version (Neutral Wire Required)
    L10R Standard Version (Neutral Wire Required)

    L10R Standard Version (Neutral Wire Required)

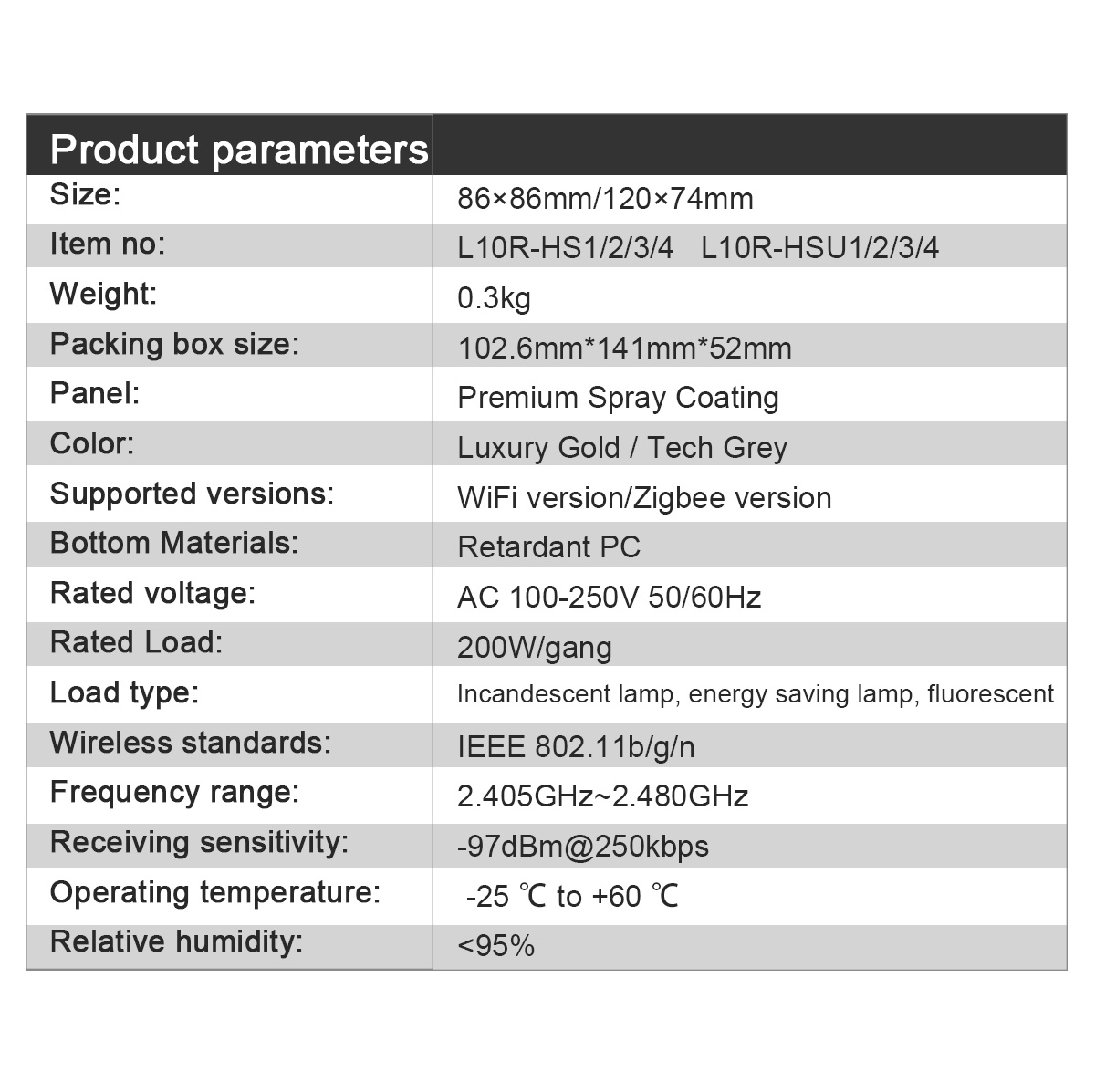

    Name:L10R Series Smart Switch

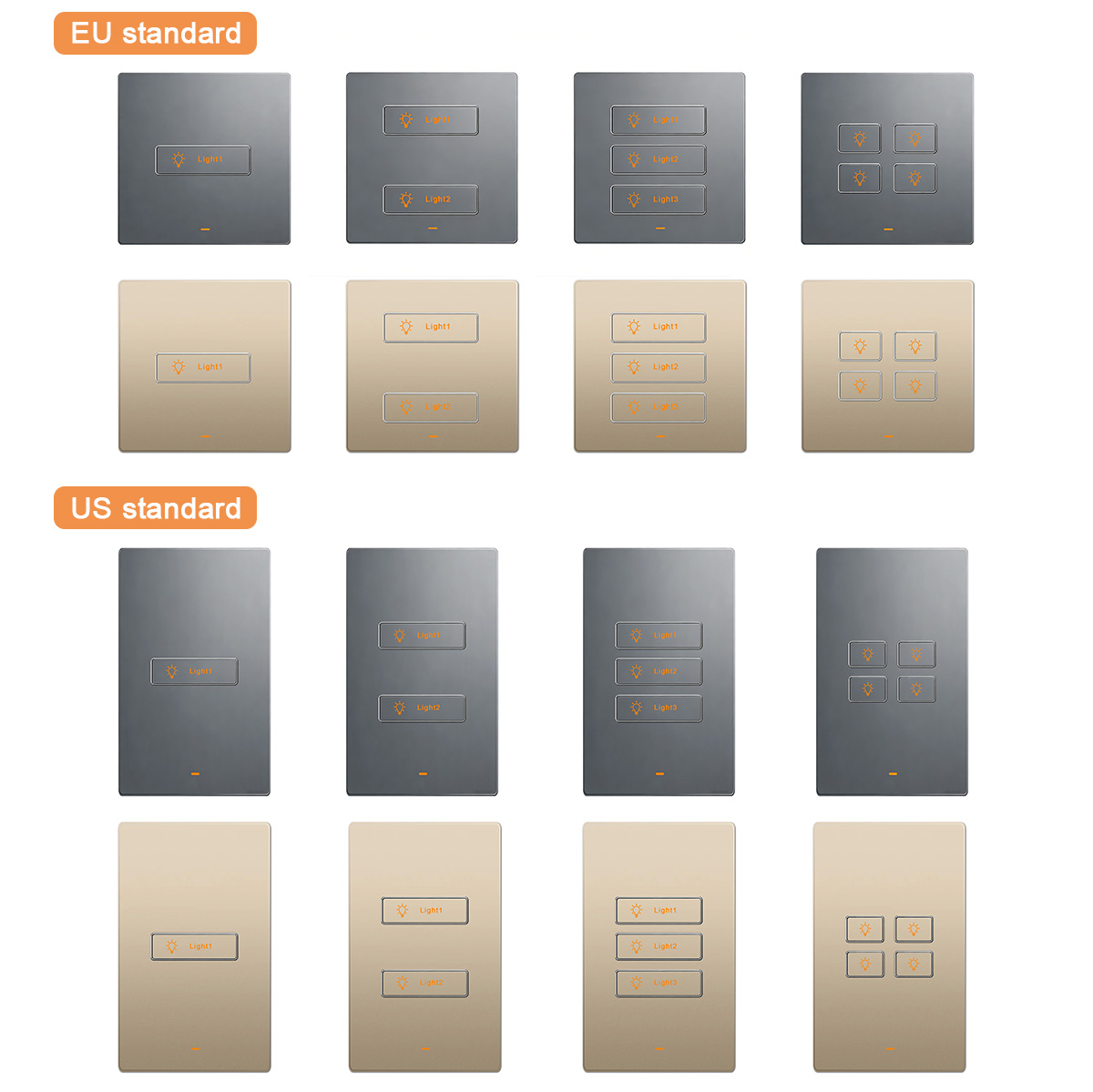

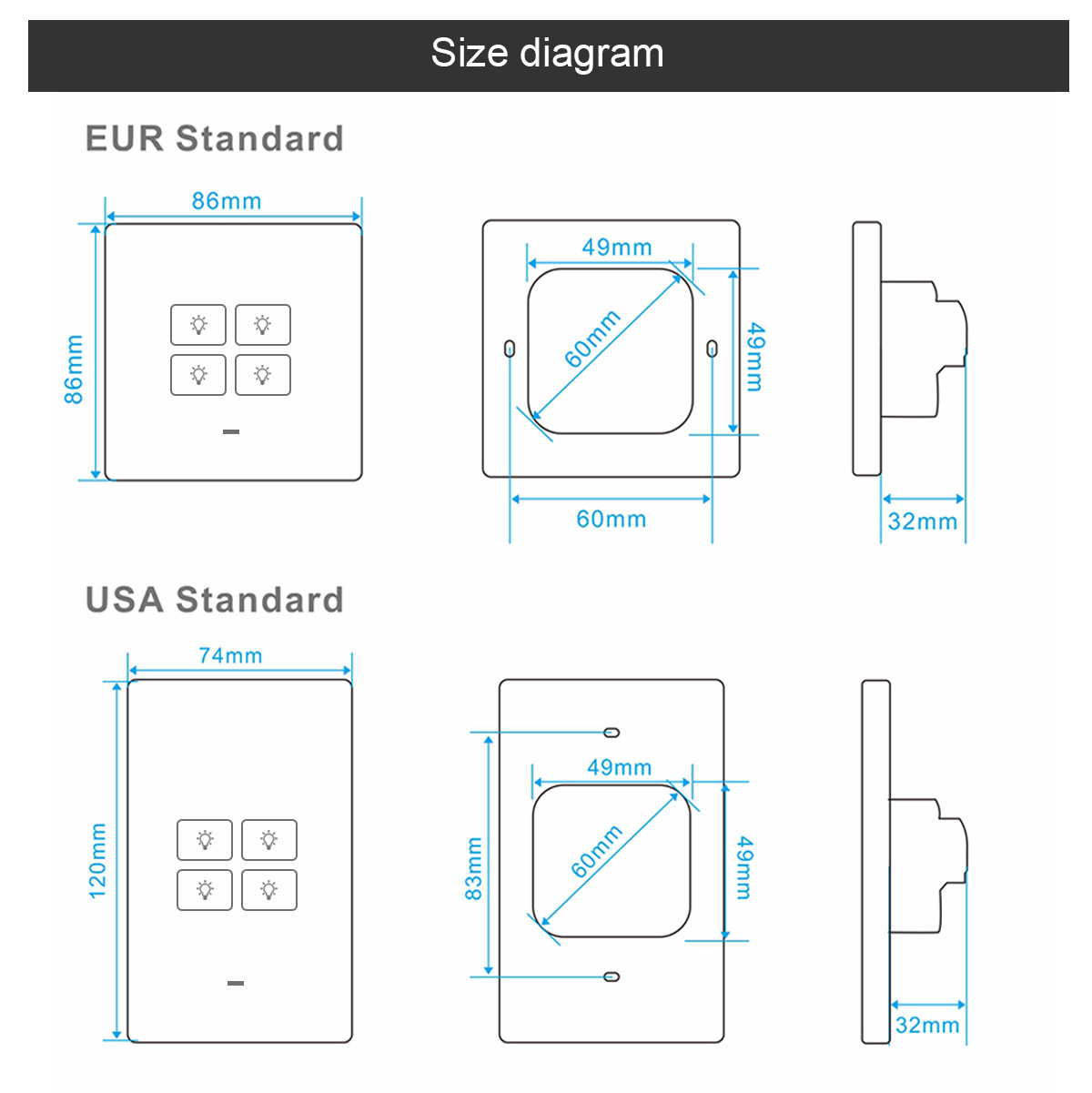

    Size:86×86mm/120×74mm

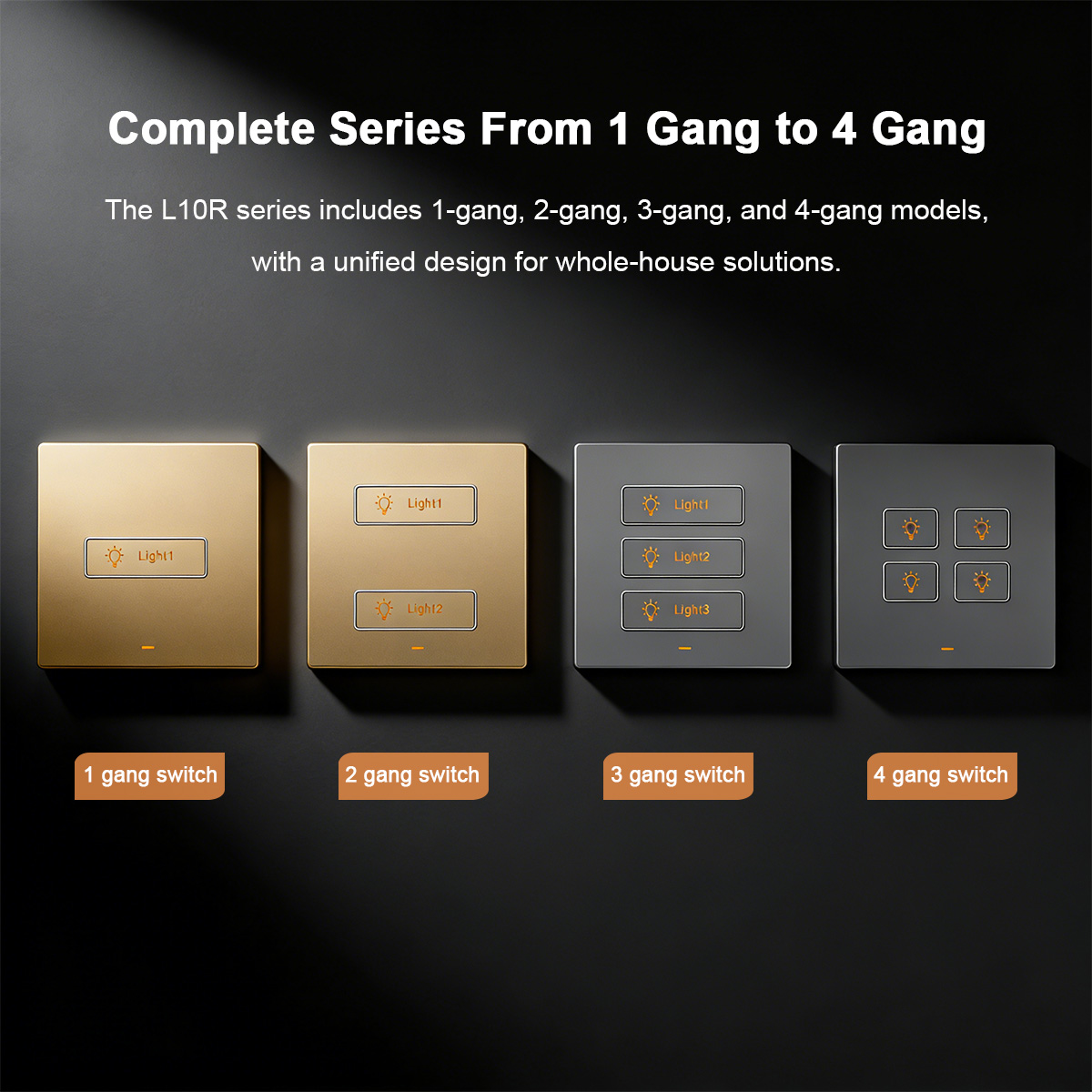

    Item no:L10R-HS1/2/3/4   L10R-HSU1/2/3/4
    Weight:0.3kg
    Packing box size:102.6mm*141mm*52mm

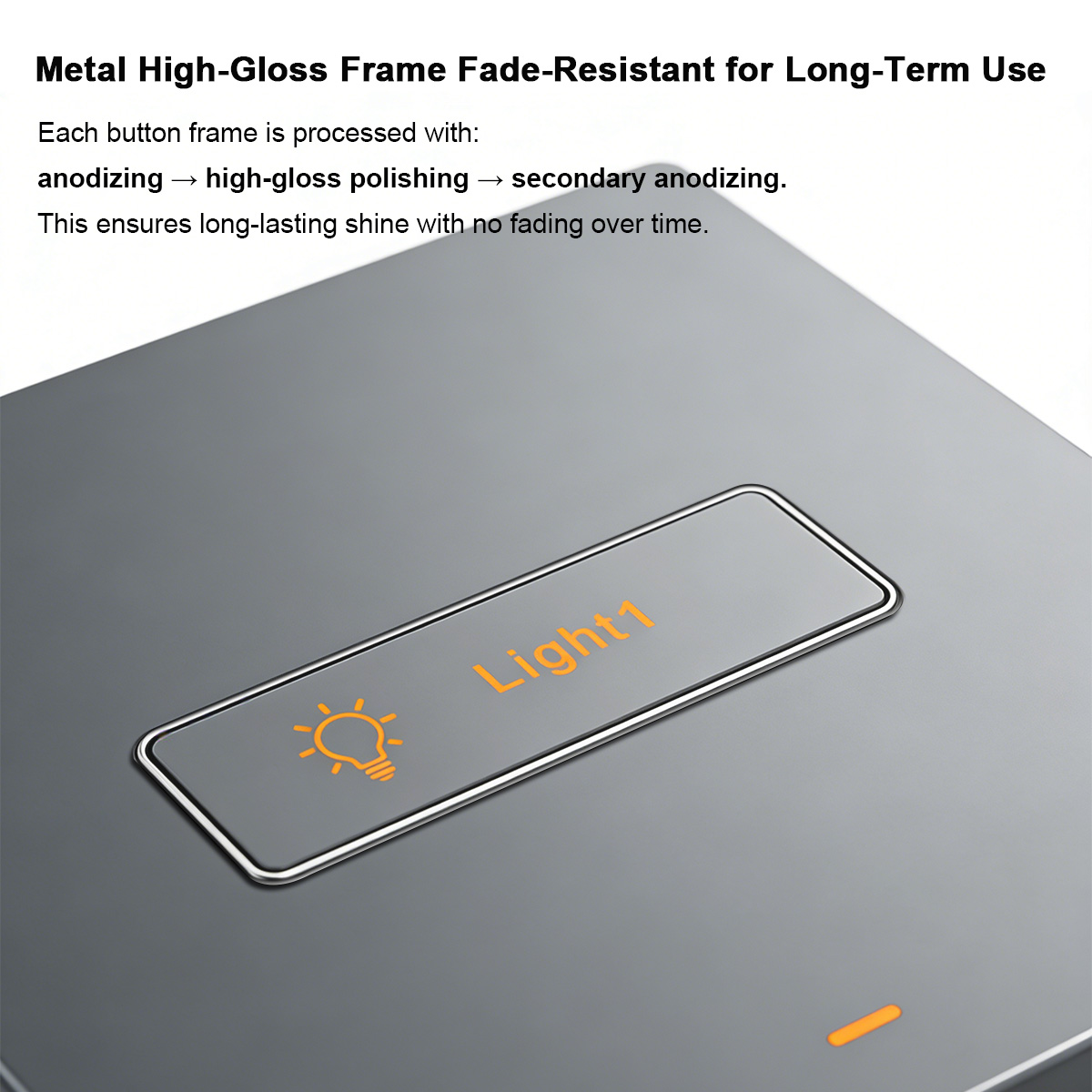

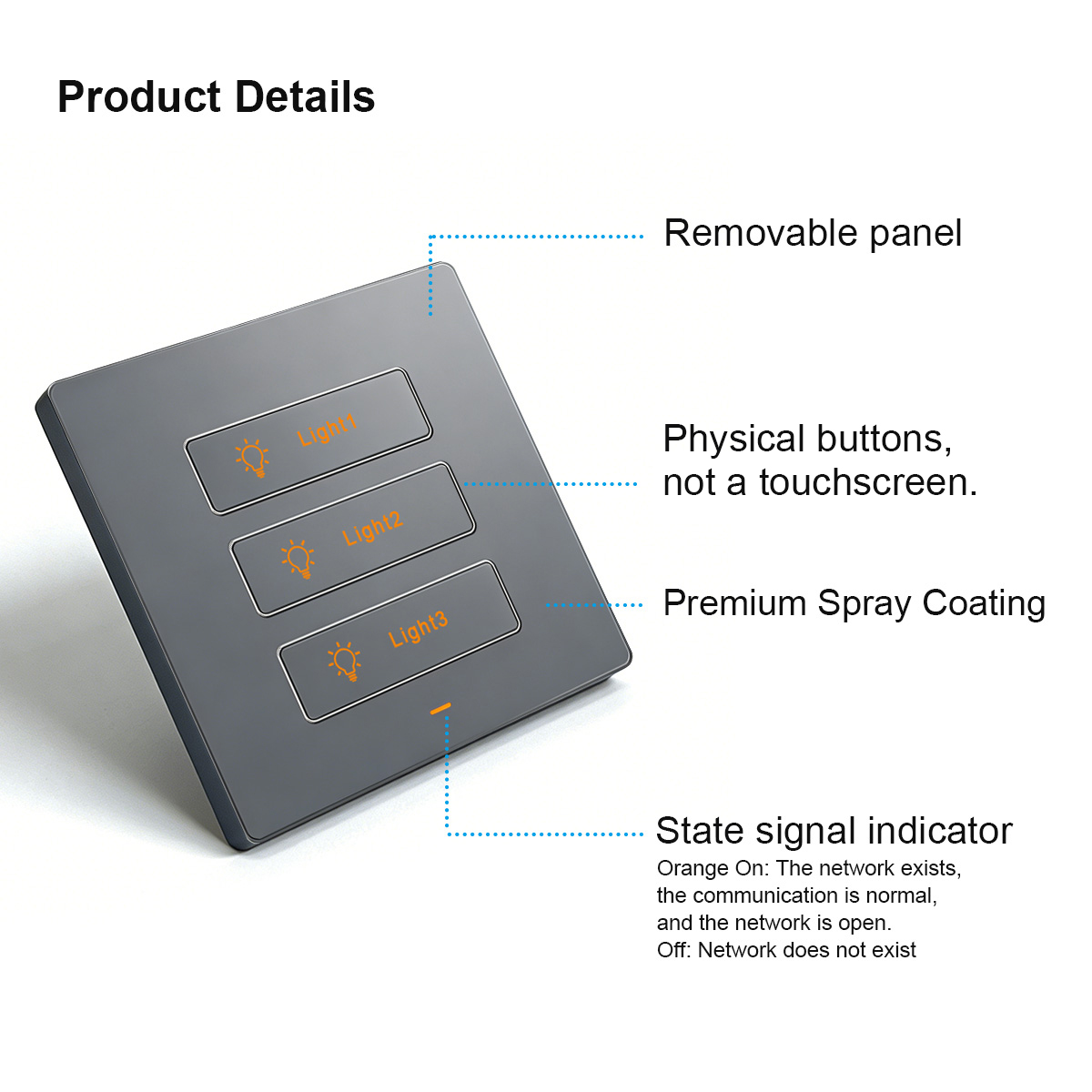

    Panel:Premium Spray Coating

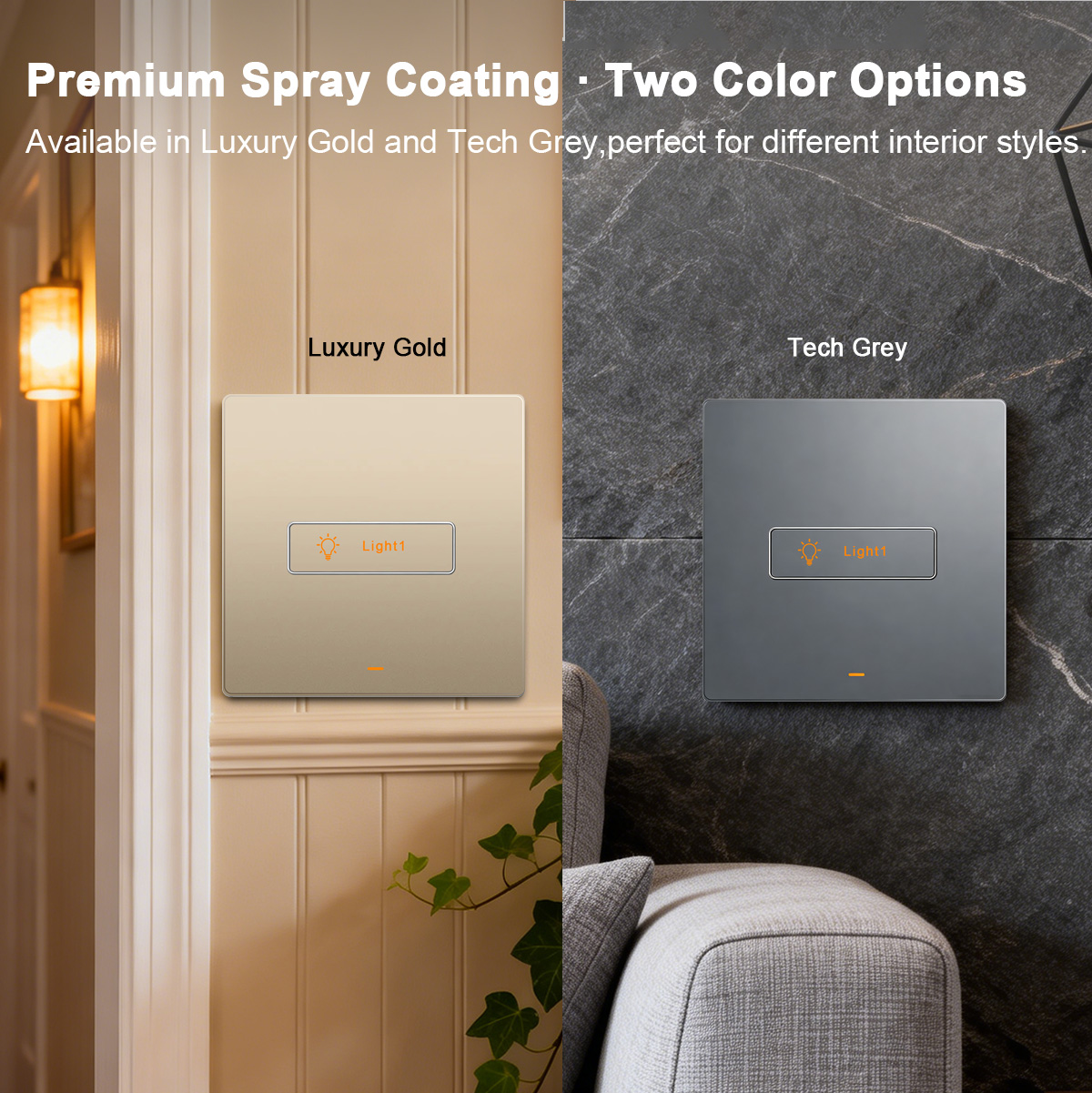

    Color:Luxury Gold / Tech Grey

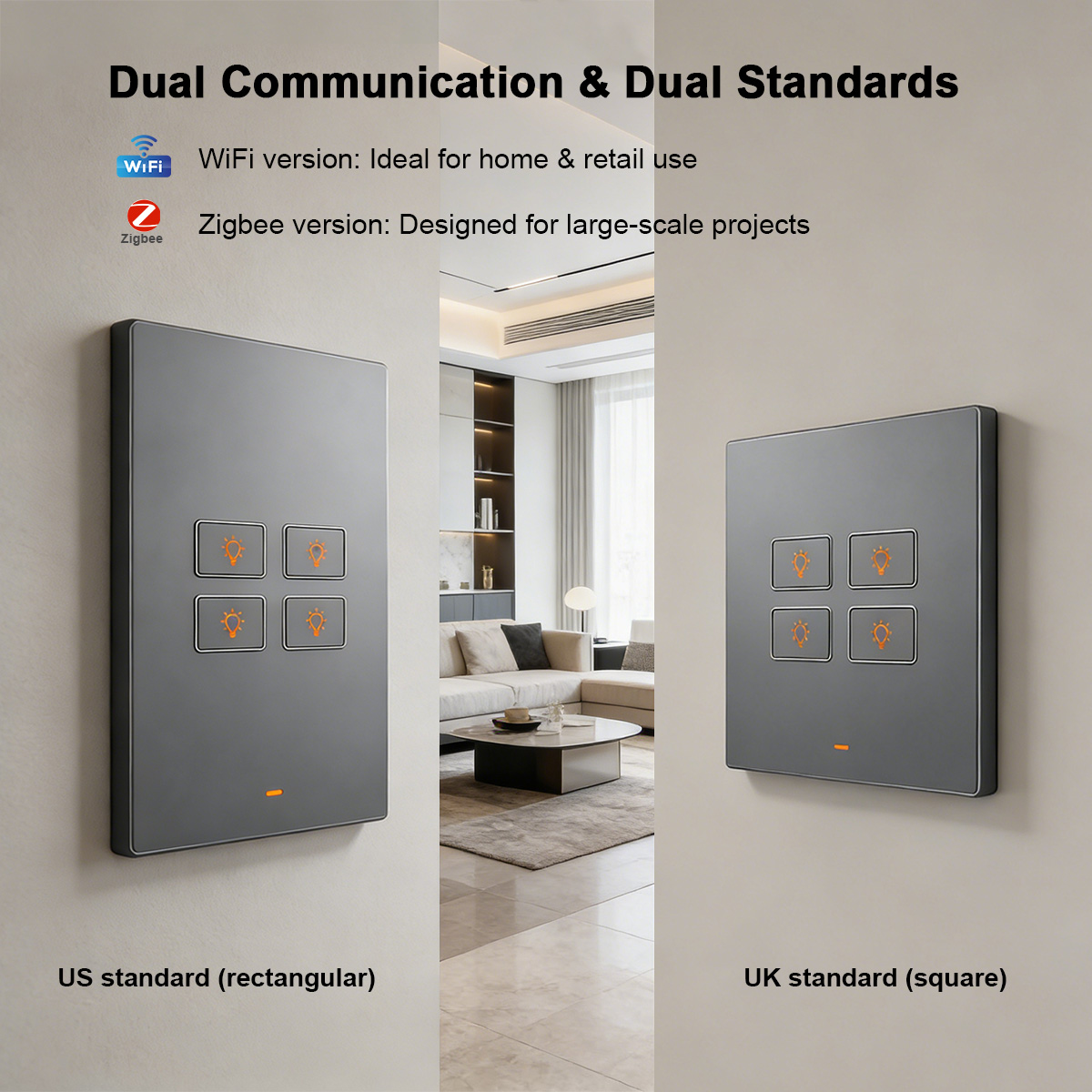

    Supported versions:WiFi version/Zigbee version
    Bottom Materials:Retardant PC
    Rated voltage:AC 100-250V 50/60Hz
    Rated Load:200W/gang
    Load type:Incandescent lamp, energy saving lamp, fluorescent
    Wireless standards:IEEE 802.11b/g/n
    Frequency range:2.405GHz~2.480GHz
    Receiving sensitivity:-97dBm@250kbps
    Operating temperature:-25 ℃ to +60 ℃
    Relative humidity:<95%
